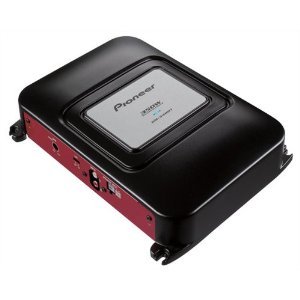

Pioneer GM-3400T Amplifier - 2/1 350W channel amp

Pioneer GM-3400T 2 Channel Bridgeable Amplifier 350W

Installation freedom.Designed to fit both cosmetically and technically with our subwoofers, the GM-3400T amplifier gives you total installation freedom and no distortion.

With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for. A high-level input is also available for a direct, easy connection to an existing OE system.

The GM-3400T is ideally paired with our TS-WX303 boxed subwoofer or the TS-W303R subwoofer, adding clean, powerful bass to your in-car sound.

Pioneer GM-3400T  Specifications:

• Maximum Output Power  2 x 120W or 1 x 350W (4Ω)
• CEA 2006 Power (THD + N = 1%)  60W RMS X 2
• Continuous power output (RMS)
• 14.4V (20Hz-20kHz/4Ω): 2 x 60W / 1 x 175 W (bridged)
• 14.4V (20Hz-20kHz/2Ω): 2 x 85W
• Load impedance capability 4Ω
• Frequency response 10 - 50 k Hz
• Distortion < 0.01% %
• S/N ratio > 95 dB
• LPF 80 Hz (-12 dB/Oct)
• RCA terminals Yes (input)
• Speaker Terminals Screw-type
• High Voltage Input Capability 0,8 - 26 V
• Input level control 200 mV - 6,5 V
• Max. current consumption (A/4Ω) 15 A
• Chassis size (W x H x D) 263 x 61 x 206 mm
• Unit weight 2.0 kg
